VLSM Scenarios - Scenario #1



























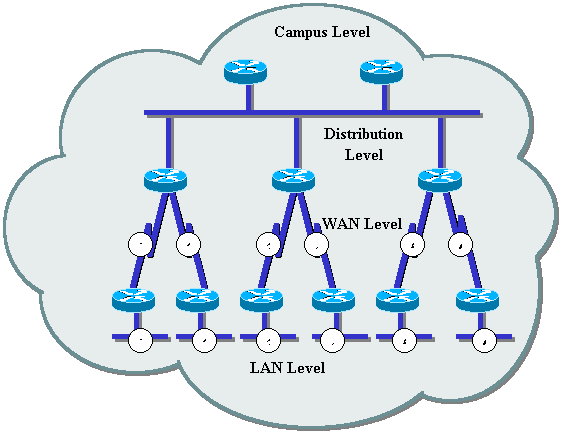

In this scenario,  we have a campus that is part of a larger network.  The campus needs to be able to support up 2000 devices.  The LAN segments vary as to the number of devices:



LAN Segment

Number of hosts

LAN1

50

LAN2

240

LAN3

57

LAN4

230

LAN5

119

LAN6

46

 The distribution level and WAN levels are based on router count.  All address must be taken from 172.16.0.0 and all segments must be taken from the campus subnet.  All LAN segments could grow to 200+ devices.



Level

Subnet

Mask

Campus





Distribution





WAN Level – WAN1





WAN Level – WAN2





WAN Level – WAN3





WAN Level – WAN4





WAN Level – WAN5





WAN Level – WAN6





LAN Level – LAN1





LAN Level – LAN2





LAN Level – LAN3





LAN Level – LAN4





LAN Level – LAN5





LAN Level – LAN6







 Scenario 1 Answer
