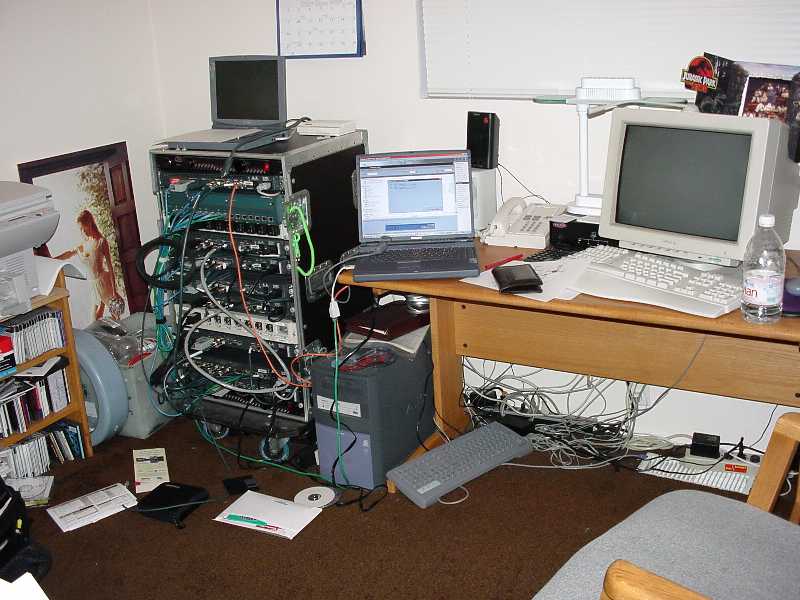

Here is my home office and lab:

The lab is evolving...  April 2006  June 2006 My Lab (logical)

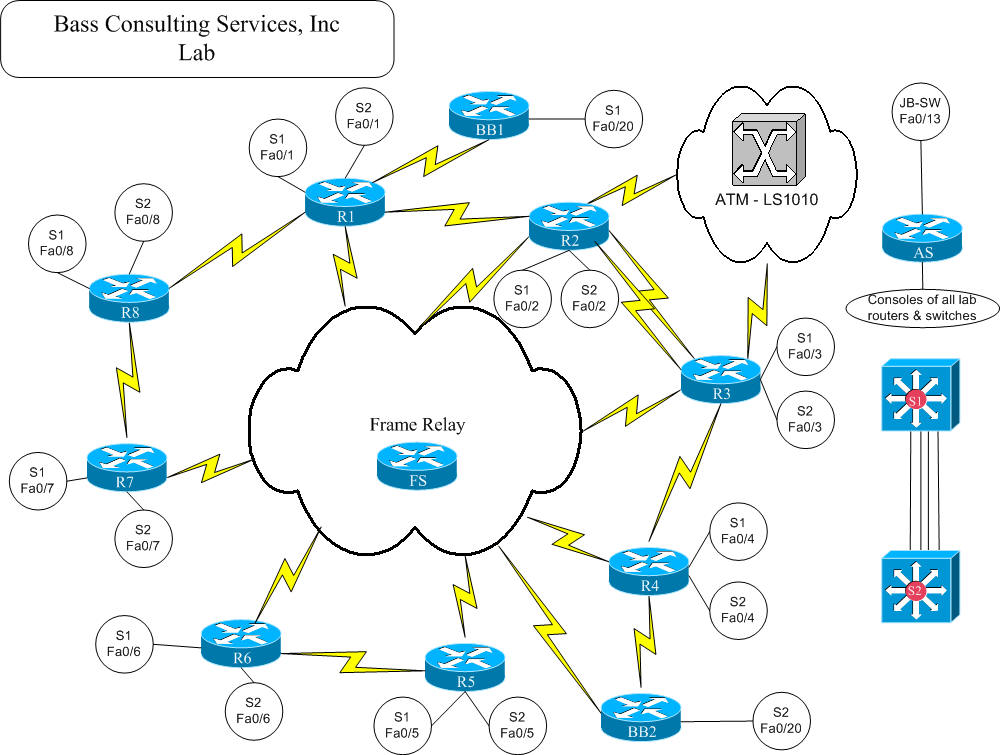

Okay, I need to update this...this is circa 1999, for the new diagram, scroll to the bottom of the page.




Notice all the Cisco Press and Cisco Class material

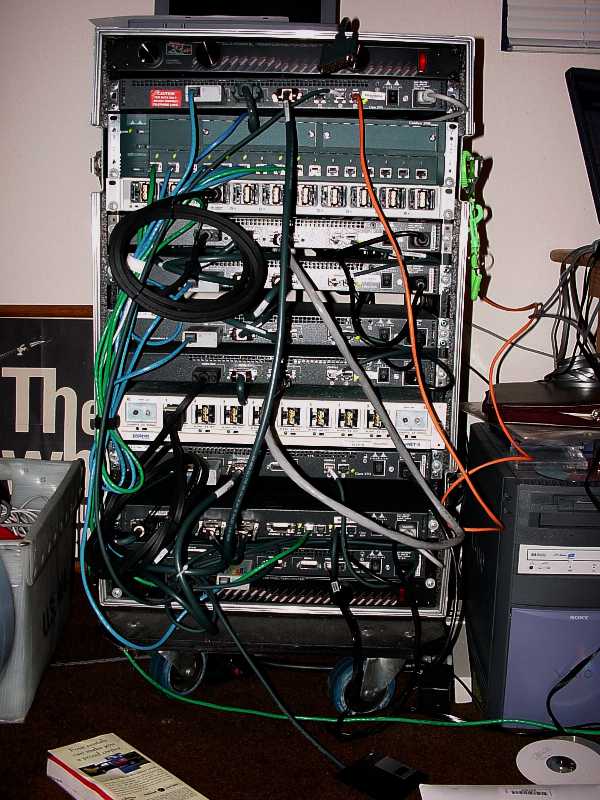

The rack is setup as follows:

Power Distribution
R8 - Cisco 2503
SW - Cisco 2916XL
Token Ring MAU
R1 - Cisco 2502
R2 - Cisco 2501
R3 - Cisco 2501
R4 - Cisco 2502
Token Ring MAU
R5 - Cisco 2501
R7 - Cisco 2520
R9 - Cisco 2511
Power Distribution

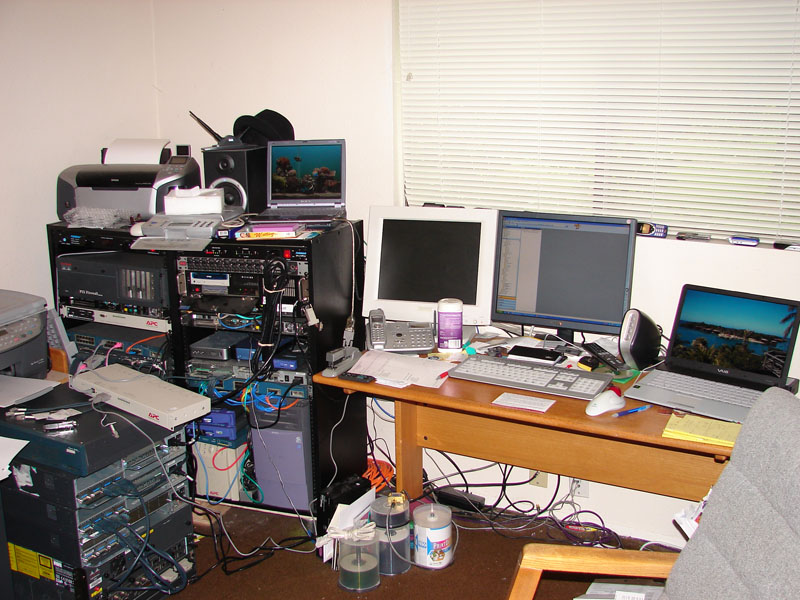

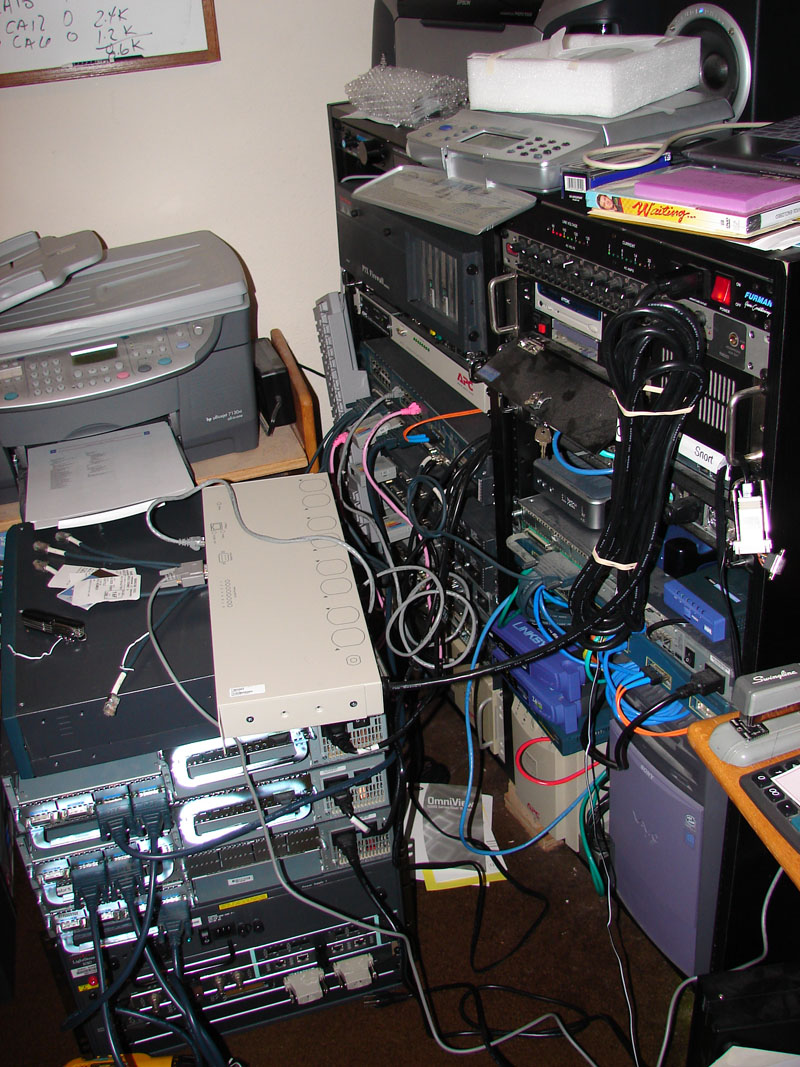

Here is the of my office and lab as of April 2006

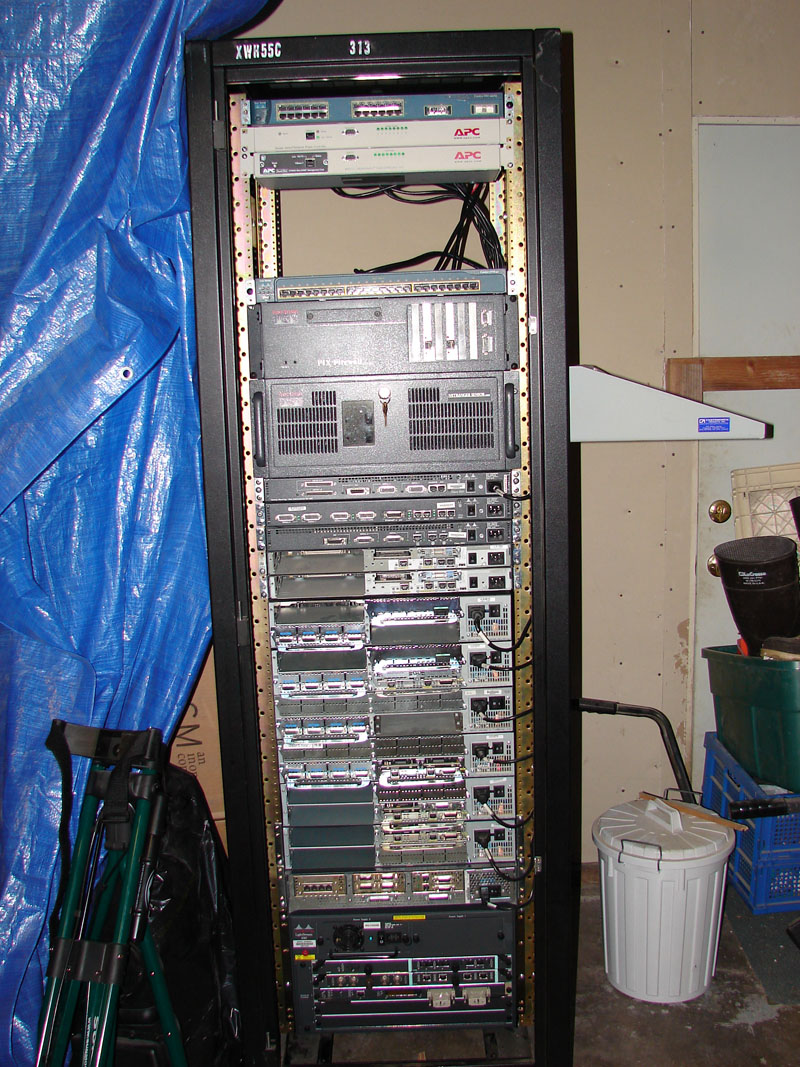

The lab has begun to move to the garage...this is June 14, 2006.

This is just the lab, there is another zero cabinet coming for the "production" network and servers.

Missing 2 switches, some rack mount kits and a few modules (all on order).

The new lab
(This doesn't include the production network in my house)
